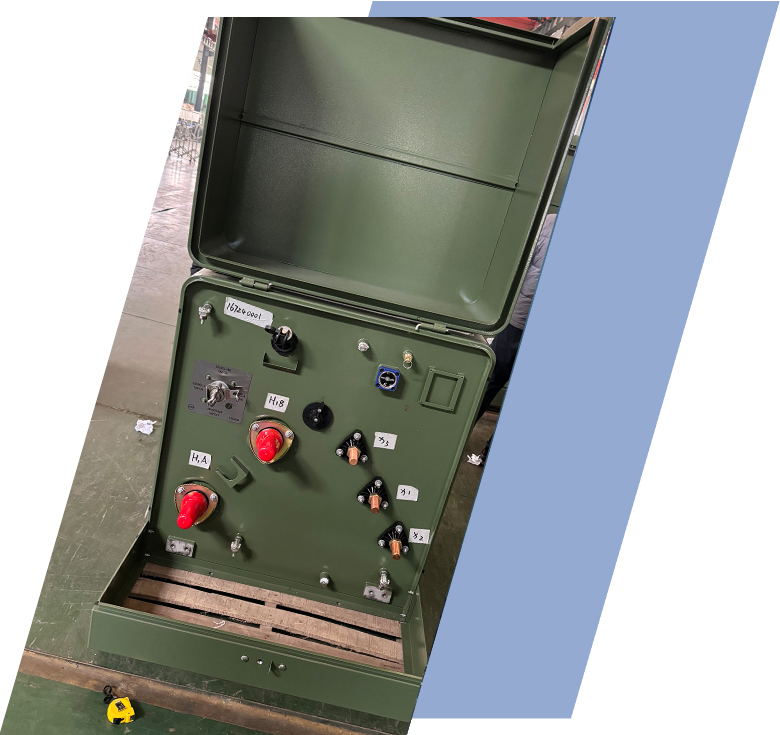

5kVA Single Phase Pad Mounted Transformer
The 5kVA Single Phase Pad Mounted Transformer is designed for reliable and efficient power distribution in residential, commercial, and light industrial applications. Ideal for medium-density areas, this transformer steps down high-voltage electricity to a usable lower voltage for safe distribution to homes and businesses.
- Primary Voltage Ratings 34.5-19.92/13.8-7.957/13.2-7.62/12.47-7.2, 24.94, 26.25, 33 or others
- Secondary Voltage Ratings 480-240/240-120V or Customized
- H.V. Tap Range ± 2×2.5% HV taps or others
- Type Loop Feed or Radial Feed
- BIL 30/95kV
- Standards IEEE, IEC, ANSI, NEMA
- Application Renewable Energy Projects,Small Commercial and Industrial Applications etc
- Power Rating 5kVA
- Certificate UL ,CESI
- Cooling Method ONAN, ONAN/ONAF, KNAN, KNAN/KNAF
- Oil Minerial Oil or FR3
- Opeartion Step Down & Step Up
Technical Specifications
Optional Configurations
Packing and Shipping
Test
Routine Test
Application
Technical Specifications
5kVA Single Phase Pad Mounted Transformer
Technical Specifications
Accessories
| Rated Power | 5 kVA |
| Rating Primary Voltage | 11950Delta or Customized |
| Secondary Voltage | 480-240V 240-120V 277V Customized |
| Frequency | 50/60Hz |
| Vector Group | Ii0,Ii6 |
| Winding Material | Aluminum/Copper |
| Efficiency | As IEEE,Doe 2016,CAS Std or Customized |
| Impedance Voltage | Nominal 2% or Customized 1.1-5.75% |
| Altitude | ≤1,000m or Customized |
| Color | ANSI 70 Light gray/Munsell 7GY3.29/1.5 or customized etc |
| Tank material | Mild Steel, 304 Stainless Steel |
| Insulating Oil Weight | 20 kg |
| Total Weight | 150 kg |
| Outline Dimensions（L×W×H）in. | 600×400×800(mm) |
| Lifting Lug | ELSP Fuse |
| Hinged Door | BAY-O-NET Fuse |
| Parking Bracket | Tap Changer |
| Tank Cover | Oil Level Gauge |
| L.V Bushing (4-Hole ) | Pressure Relief Valve |
| Two/Four Position Load break Switch | Vacuum Pressure Gauge |
| HV Grounding Copper Bar | Terminal Block |
| Temperature Indicator | Door Handle |
| H.V Bushing Well | Ground Strap |
| Grounding Copper Bar | Nameplate |
| 1"'Drain Valve With 3/8" Sampler | Non-PCB decal |
| 1" Upper Fill Valve Filter Press Connection | High Voltage Warning Signs |
Optional Configurations
5kVA Single Phase Pad Mounted Transformer
NPC ELECTRIC’s single-phase pad-mounted transformers can be fully customized to meet your specific requirements. NPC ELECTRIC’s single-phase pad-mounted transformers can be fully customized to meet your specific requirements. The 5kVA Single Phase Pad Mounted Transformer offers a range of optional specifications to cater to specific customer needs. These options may include different insulating oil types (such as mineral oil or biodegradable oil), on-load tap changers (OLTC) for precise voltage regulation, and additional protective features like surge arresters or pressure relief devices to safeguard against faults.
Customers can also opt for temperature monitoring systems to ensure efficient operation, as well as enhanced corrosion protection through special coatings, making the transformer suitable for harsh environments. These customizable options allow the transformer to be tailored for optimal performance, safety, and reliability based on the installation requirements.
Packing and Shipping
5kVA Single Phase Pad Mounted Transformer
NPC ELECTRIC single-phase pad mounted transformers are designed to be securely packaged for sea freight transport, ensuring safe delivery across long distances. For this purpose, the Packing and Shipping process for a 5kVA Single Phase Pad Mounted Transformer is designed to ensure safe and secure transportation to the customer. The transformer is carefully packed in a sturdy, weather-resistant wooden crate or metal container to protect it from physical damage, moisture, and environmental factors during transit.
The packing includes appropriate padding and shock-absorbing materials to prevent any movement or impact that could damage the transformer’s components.
For shipping, the transformer is typically transported by road, rail, or sea, depending on the destination.
The shipment is clearly labeled with handling instructions and safety warnings to ensure proper handling throughout the transportation process.
The transformer is securely fastened to the shipping pallet or platform, and necessary documentation, such as shipping labels, certificates, and customs declarations, are included to comply with international shipping regulations.
Once the transformer reaches its destination, the packaging is carefully removed, and the transformer is inspected for any transit-related damage before installation. The packing and shipping process ensures that the 5kVA Single Phase Pad Mounted Transformer arrives in perfect condition, ready for safe installation and reliable performance.
The packing includes appropriate padding and shock-absorbing materials to prevent any movement or impact that could damage the transformer’s components.
For shipping, the transformer is typically transported by road, rail, or sea, depending on the destination.
The shipment is clearly labeled with handling instructions and safety warnings to ensure proper handling throughout the transportation process.
The transformer is securely fastened to the shipping pallet or platform, and necessary documentation, such as shipping labels, certificates, and customs declarations, are included to comply with international shipping regulations.
Once the transformer reaches its destination, the packaging is carefully removed, and the transformer is inspected for any transit-related damage before installation. The packing and shipping process ensures that the 5kVA Single Phase Pad Mounted Transformer arrives in perfect condition, ready for safe installation and reliable performance.
32
32 years of industry experience
Test
5kVA Single Phase Pad Mounted Transformer
Progress Test
NPC Electirc manufacture pad mounted transformer have the strict quality control , The Progress Test for a 5kVA Single Phase Pad Mounted Transformer is conducted at various stages during its manufacturing process to ensure that the transformer meets all technical specifications and quality standards. This includes testing of core insulation, winding resistance, and dielectric strength, as well as verifying the performance of electrical components like bushings and tap changers. The progress tests also assess the transformer’s ability to handle load and voltage variations, ensuring it operates efficiently and safely under real-world conditions. Any adjustments or corrections are made based on test results before the final inspection and factory acceptance testing (FAT). This process guarantees that the transformer meets safety, performance, and reliability standards before delivery.
Design Tests
All transformer will be test after finished the production, test items as below:
♦ Insulation Power Factor:
♦ Ratio, Polarity, and Phase Relation:
♦ Winding Resistance:
♦ Impulse Tests:
♦ On load Loss Test:
♦ No Load Loss Test
♦ Leak Test:
♦ DC Insulation Resistance Test
♦ Transformer Turns Ratio/TTR (All Tap Voltages)
♦ Impedance Voltage & Load Loss (Rated Voltage)
♦ Polarity, 1-Ph / Phase Relation, 3-Ph (Rated Voltage)
♦ Excitation & No-Load Loss (Rated Voltage)
♦ Applied Voltage
♦ Induced Voltage
♦ Lightning Impulse
♦ Insulation Resistance (Rated Voltage)
♦ Temperature Rise
♦ Dielectric Withstand (Hipot)
♦ Insulation Power Factor:
♦ Ratio, Polarity, and Phase Relation:
♦ Winding Resistance:
♦ Impulse Tests:
♦ On load Loss Test:
♦ No Load Loss Test
♦ Leak Test:
♦ DC Insulation Resistance Test
♦ Transformer Turns Ratio/TTR (All Tap Voltages)
♦ Impedance Voltage & Load Loss (Rated Voltage)
♦ Polarity, 1-Ph / Phase Relation, 3-Ph (Rated Voltage)
♦ Excitation & No-Load Loss (Rated Voltage)
♦ Applied Voltage
♦ Induced Voltage
♦ Lightning Impulse
♦ Insulation Resistance (Rated Voltage)
♦ Temperature Rise
♦ Dielectric Withstand (Hipot)
Transformer Factory Acceptance Test
NPC Electric will tests made for quality control by the manufacturer on every device or representative samples, or on parts or materials as required, to verify during production that the product meets the design specifications.
The Transformer Factory Acceptance Test (FAT) for a 5kVA Single Phase Pad Mounted Transformer is a comprehensive testing process conducted before the transformer is shipped to the customer. The FAT ensures that the transformer meets all design specifications, safety standards, and performance criteria. Key tests performed include:
Visual Inspection: Verifying the overall build quality, including welds, enclosures, and labeling.
Electrical Tests: Measuring insulation resistance, winding resistance, and performing a turns ratio test to ensure proper functionality of the electrical components.
Dielectric Testing: Checking the transformer’s insulation strength by applying high voltage to ensure it can withstand operating conditions without breakdown.
Operational Tests: Simulating load conditions to verify that the transformer operates efficiently and safely within specified parameters.
Functional Testing: Ensuring that all protective devices (such as bushings, tap changers, and surge arresters) work correctly.
The FAT confirms the transformer’s compliance with international standards and guarantees its readiness for installation and reliable long-term operation.
The Transformer Factory Acceptance Test (FAT) for a 5kVA Single Phase Pad Mounted Transformer is a comprehensive testing process conducted before the transformer is shipped to the customer. The FAT ensures that the transformer meets all design specifications, safety standards, and performance criteria. Key tests performed include:
Visual Inspection: Verifying the overall build quality, including welds, enclosures, and labeling.
Electrical Tests: Measuring insulation resistance, winding resistance, and performing a turns ratio test to ensure proper functionality of the electrical components.
Dielectric Testing: Checking the transformer’s insulation strength by applying high voltage to ensure it can withstand operating conditions without breakdown.
Operational Tests: Simulating load conditions to verify that the transformer operates efficiently and safely within specified parameters.
Functional Testing: Ensuring that all protective devices (such as bushings, tap changers, and surge arresters) work correctly.
The FAT confirms the transformer’s compliance with international standards and guarantees its readiness for installation and reliable long-term operation.
Routine Test
Insulation Power Factor
Ratio, Polarity, and Phase Relation
Winding Resistance
Impulse Tests
On Load Loss Test
No Load Loss Test
Test Standard As Below:
IEEE C57.12.00 & IEEE C57.12.90 (Liquid-Immersed)
IEEE C57.12.01 & IEEE C57.12.91 (Dry-Type)
IEEE C57.12.01 & IEEE C57.12.91 (Dry-Type)
*These comprehensive tests ensure that each transformer meets performance standards and operates reliably under various conditions.
Application
Renewable Energy Projects,Small Commercial and Industrial Applications etc
