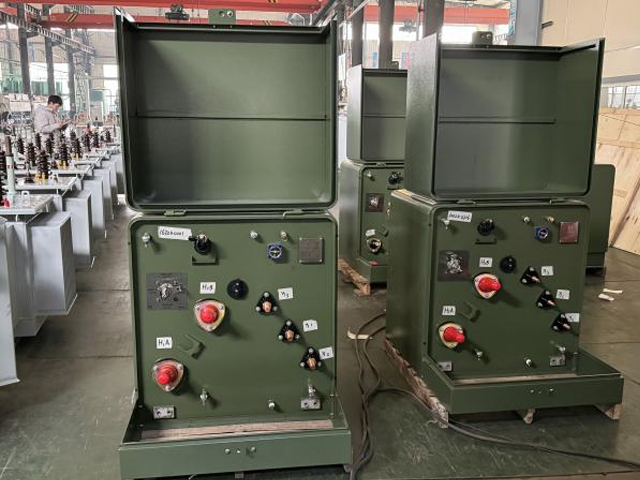

10kVA Conventional Type Single Phase pole Mounted Transformer
NPC ELECTRIC specializes in designing and manufacturing 10 kVA single-phase pole-mounted transformers that comply with international standards, including IEEE C57.12.00, IEEE C57.12.20, DOE-2016 Efficiency, CSA C2.1 & C2.2, and CSA C802.1. Our unwavering commitment to excellence drives us to provide tailored solutions, ensuring that each transformer aligns precisely with your unique technical requirements. Regardless of the voltage level or operating environment, you can trust NPC ELECTRIC to deliver the ideal solution to meet your specific needs. Your satisfaction and the reliability of our transformers remain central to our dedication to quality.
- Primary Voltage Ratings 2.4-34.5kV
- Secondary Voltage Ratings 480-240/240-120 or customized
- H.V. Tap Range ± 2×2.5% HV taps or others
- Type Conventional Type
- BIL 30-150kV
- Standards IEEE, ANSI, NEMA, ASTM
- Application Ultility & distributionetc
- Power Rating 10kVA
- Certificate UL ,CESI ,DNV or SGS
- Cooling Method ONAN, KNAN
- Oil Minerial Oil or FR3
- Opeartion Step Down
Technical Specifications
Optional Configurations
Packing and Shipping
Test
Routine Test
Application
Technical Specifications
10kVA Conventional Type Single Phase pole Mounted Transformer
Technical Specifications

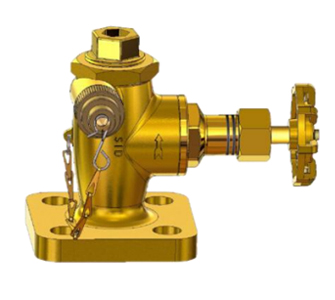

Accessories
| Rated Power | 10 kVA |
| Rating Primary Voltage | 12.4-34.5kV |
| Secondary Voltage | 480-240V 240-120V 277V Customized |
| Frequency | 50/60Hz |
| Vector Group | Ii0,Ii6 |
| Winding Material | Aluminum/Copper |
| Efficiency | As IEEE,Doe 2016,CAS Std or Customized |
| Impedance Voltage | Nominal 2% or Customized 1.1-5.75% |
| Altitude | ≤1,000m or Customized |
| Color | ANSI 70 Light gray/Munsell 7GY3.29/1.5 or customized etc |
| Tank material | Mild Steel, 304 Stainless Steel |
| Insulating Oil Weight | 70 kg |
| Total Weight | 240kg |
| Outline Dimensions（L×W×H）in. | 17×20×42 |
| Lifting Lug |
| Tap Changer |
| Pressure Relief Valve |
| Tank Cover and clamp |
| L.V Bushing |
| HV Bushing |
| Ground Strap |
| Nameplate |
| Non-PCB decal |
| High Voltage Warning Signs |
| Support lug |
| Oil fill valve |
Optional Configurations
10kVA Conventional Type Single Phase pole Mounted Transformer
NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer According to different application requirements and working environments, this transformer provides a variety of optional specifications to ensure optimal operating performance and safety.
Common options for the rated voltage high side include 2.4kV, 4.16kV, 7.2kV, 11kV, selected according to the grid standards of different regions. Common low voltage options on the low voltage side are 120/240V, 230/400V or customized voltage to meet different application requirements.
Optional insulation grades include Class A, Class B, Class F or Class H. Select the appropriate grade according to the working environment and use temperature of the transformer. High-grade insulation system provides better heat resistance and longer service life, especially for operation in high temperature or harsh environments.
Choose mineral oil that meets IEC 60296 or ASTM D3487 standards, has good electrical insulation performance and heat dissipation capacity, and silicone oil that is suitable for environments with higher fire protection requirements and has good high temperature resistance and fire resistance.
Bay-O-Net fuses and ELSP overcurrent protection fuses are available on the high-voltage side to effectively protect the transformer from overload and short-circuit damage. Lightning arresters can be installed on the low-voltage side to effectively prevent the impact of lightning strikes and voltage mutations on the transformer.
NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer offers a range of flexible optional specifications to meet different application environments and work requirements. By selecting different voltage levels, insulation systems, cooling methods, enclosure protection levels, and intelligent monitoring functions, the transformer can provide stable, reliable, and efficient power supply in residential, commercial, agricultural and other scenarios.
Packing and Shipping
10kVA Conventional Type Single Phase pole Mounted Transformer
The packaging and shipping process of NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer is crucial to ensure that the product is safe and intact during transportation and can cope with the special environment of sea transportation (such as salt spray, moisture, vibration, etc.).
The core components of the transformer (such as oil tank, windings, electrical connections) need to be professionally protected. First, we will wrap the vulnerable parts of the transformer with soft shockproof materials (such as foam, plastic protective film) to avoid impact and friction during transportation.
The transformer is placed in a reinforced wooden box or wooden pallet to ensure that the product is stable and easy to load and unload. The wooden box can be protected by multiple layers of shockproof foam pads, wooden pads and soft pads. The outside of the package will be marked with product information, operating requirements and shipping labels such as "fragile" and "waterproof". Anti-corrosion coatings will be used in the packaging materials, especially in environments with high humidity and salt spray, to ensure that the packaging materials will not corrode due to weather reasons.
The transformer will be firmly fixed in the container using wooden brackets or steel support frames to prevent severe vibrations during sea transportation. To prevent bumps and vibrations during transportation, the transformer will be firmly locked in the container.
In order to prevent potential risks during transportation, we will purchase transportation insurance for the transformer, including marine transportation insurance, fire insurance, theft insurance, etc., to ensure that compensation can be obtained in time in case of accidents.
During the packaging and shipping of NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer, special attention is paid to the safety, integrity and timely delivery of the product. Through carefully designed internal and external packaging, professional transportation arrangements and strict loading and unloading processes, we ensure that the product can reach the hands of customers in the best condition.
The core components of the transformer (such as oil tank, windings, electrical connections) need to be professionally protected. First, we will wrap the vulnerable parts of the transformer with soft shockproof materials (such as foam, plastic protective film) to avoid impact and friction during transportation.
The transformer is placed in a reinforced wooden box or wooden pallet to ensure that the product is stable and easy to load and unload. The wooden box can be protected by multiple layers of shockproof foam pads, wooden pads and soft pads. The outside of the package will be marked with product information, operating requirements and shipping labels such as "fragile" and "waterproof". Anti-corrosion coatings will be used in the packaging materials, especially in environments with high humidity and salt spray, to ensure that the packaging materials will not corrode due to weather reasons.
The transformer will be firmly fixed in the container using wooden brackets or steel support frames to prevent severe vibrations during sea transportation. To prevent bumps and vibrations during transportation, the transformer will be firmly locked in the container.
In order to prevent potential risks during transportation, we will purchase transportation insurance for the transformer, including marine transportation insurance, fire insurance, theft insurance, etc., to ensure that compensation can be obtained in time in case of accidents.
During the packaging and shipping of NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer, special attention is paid to the safety, integrity and timely delivery of the product. Through carefully designed internal and external packaging, professional transportation arrangements and strict loading and unloading processes, we ensure that the product can reach the hands of customers in the best condition.
32
32 years of industry experience
Test
10kVA Conventional Type Single Phase pole Mounted Transformer
Progress Test
NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer progress test mainly includes raw material testing, coil winding and core assembly inspection to ensure that the production process meets technical standards. During the manufacturing process, insulation resistance test, winding voltage ratio test and partial discharge test will be carried out to ensure the electrical performance of the transformer and ensure that it meets the design specifications and quality requirements.
Design Tests
All transformer will be test after finished the production, test items as below:
♦ Insulation Power Factor:
♦ Ratio, Polarity, and Phase Relation:
♦ Winding Resistance:
♦ Impulse Tests:
♦ On load Loss Test:
♦ No Load Loss Test
♦ Leak Test:
♦ DC Insulation Resistance Test
♦ Transformer Turns Ratio/TTR (All Tap Voltages)
♦ Impedance Voltage & Load Loss (Rated Voltage)
♦ Polarity, 1-Ph / Phase Relation, 3-Ph (Rated Voltage)
♦ Excitation & No-Load Loss (Rated Voltage)
♦ Applied Voltage
♦ Induced Voltage
♦ Lightning Impulse
♦ Insulation Resistance (Rated Voltage)
♦ Temperature Rise
♦ Dielectric Withstand (Hipot)
♦ Insulation Power Factor:
♦ Ratio, Polarity, and Phase Relation:
♦ Winding Resistance:
♦ Impulse Tests:
♦ On load Loss Test:
♦ No Load Loss Test
♦ Leak Test:
♦ DC Insulation Resistance Test
♦ Transformer Turns Ratio/TTR (All Tap Voltages)
♦ Impedance Voltage & Load Loss (Rated Voltage)
♦ Polarity, 1-Ph / Phase Relation, 3-Ph (Rated Voltage)
♦ Excitation & No-Load Loss (Rated Voltage)
♦ Applied Voltage
♦ Induced Voltage
♦ Lightning Impulse
♦ Insulation Resistance (Rated Voltage)
♦ Temperature Rise
♦ Dielectric Withstand (Hipot)
Transformer Factory Acceptance Test
Factory acceptance tests for NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer include insulation withstand voltage test, no-load and load loss test, short circuit impedance test and oil dielectric test to ensure that the transformer meets the design specifications and quality standards.
Routine Test
Insulation Power Factor
Ratio, Polarity, and Phase Relation
Winding Resistance
Impulse Tests
On Load Loss Test
No Load Loss Test
Test Standard As Below:
IEEE C57.12.00 & IEEE C57.12.90 (Liquid-Immersed)
IEEE C57.12.01 & IEEE C57.12.91 (Dry-Type)
IEEE C57.12.01 & IEEE C57.12.91 (Dry-Type)
*These comprehensive tests ensure that each transformer meets performance standards and operates reliably under various conditions.
Application
Ultility & distributionetc
